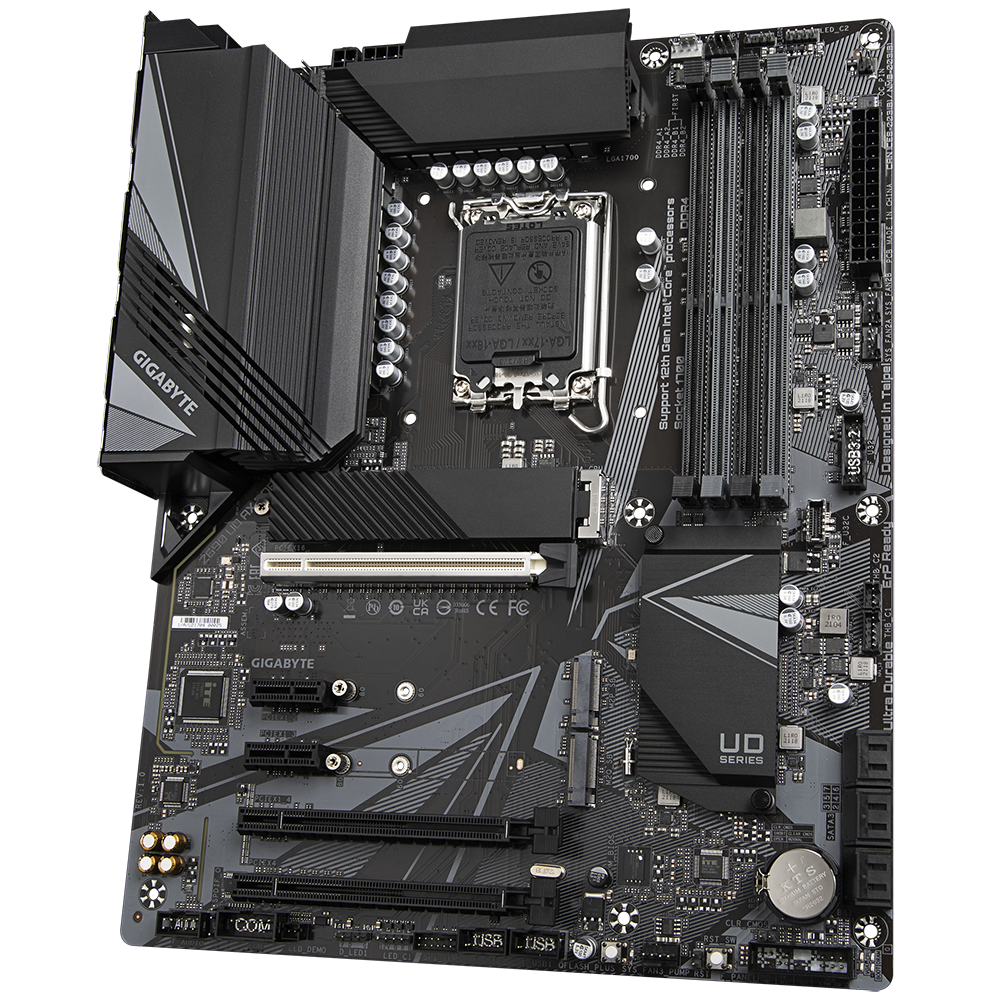

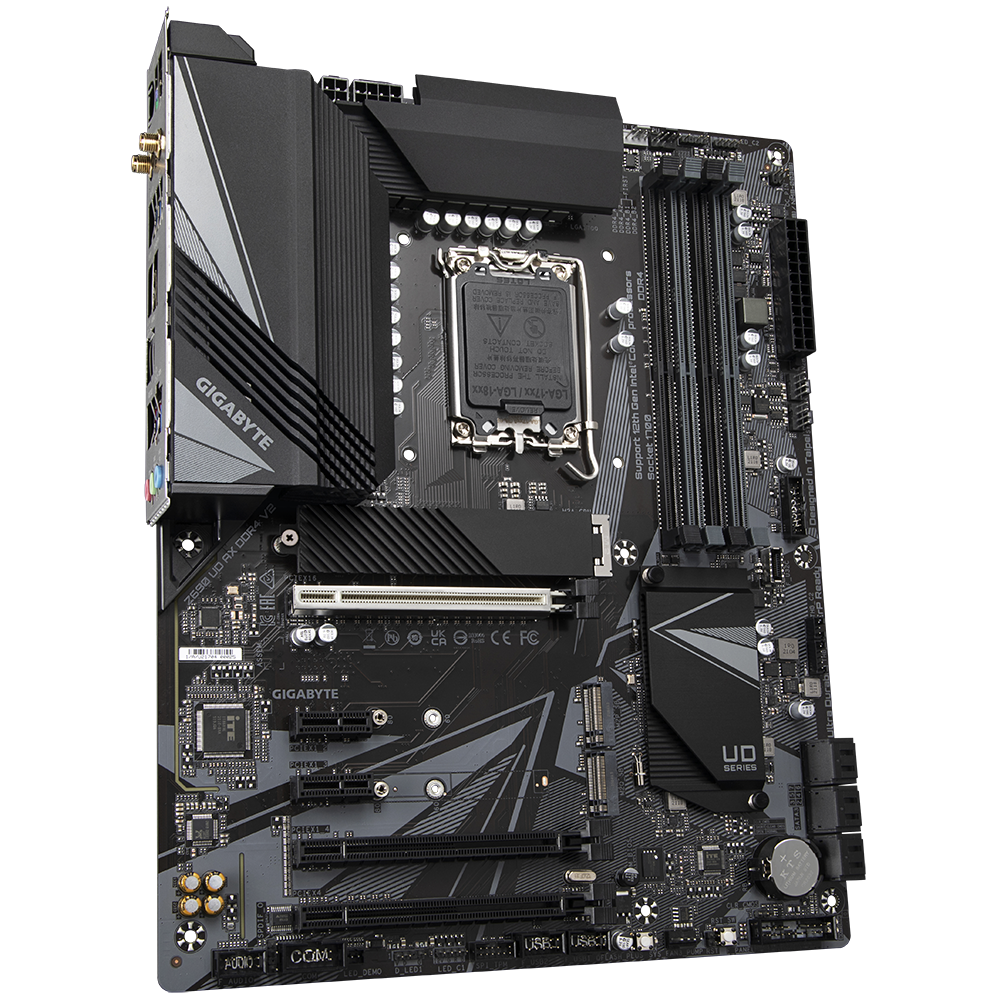

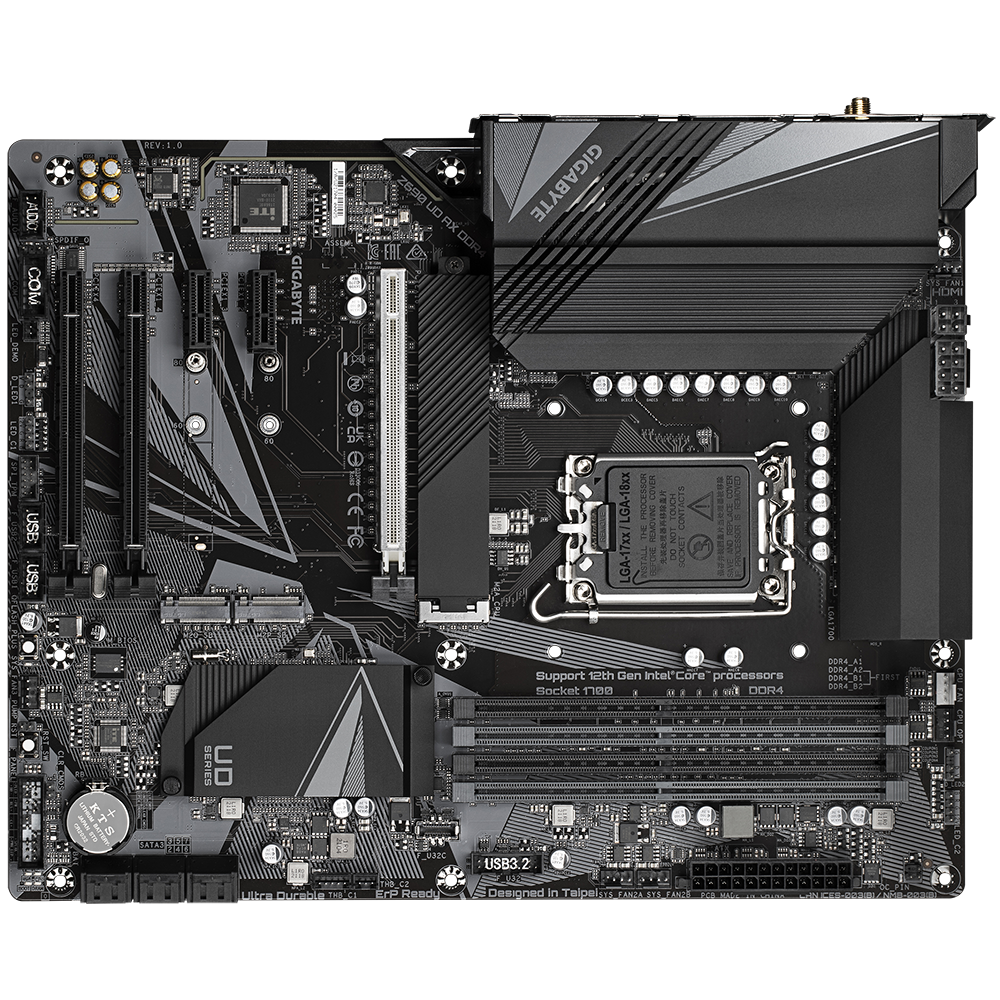

Mainboard Gigabyte Z690 UD AX DDR4 V2 (WiFi + Bluetooth)

(0 lượt đánh giá)

Lượt xem: 1197

Mã hàng: Z690 UD AX DDR4

-16%

https://tpluscomputer.vn/Mainboard Gigabyte Z690 UD AX DDR4 V2 (WiFi + Bluetooth)

Đặc điểm nổi bật:

Chipset: Intel Z690
Socket: LGA1700
Kích thước: ATX
Khe cắm RAM: 4 DIMM DDR4 (Tối đa 128GB)
Tích hợp Intel Wi-Fi 6E AX211
Tích hợp BLUETOOTH 5.3

Bảo hành: 36 Tháng

5,250,000đ

6,250,000đ

Khuyến mãi:

ĐẶT MUA NGAY

Giao hàng tận nơi nhanh chóng

Để lại số điện thoại, chúng tôi sẽ tư vấn cho Quý khách!

Yên tâm mua sắm tại TPLUS COMPUTER

Sản phẩm 100% chính hãng
Bảo hành tận nơi sử dụng trong nội thành
Giá cạnh tranh nhất thị trường
Free ship toàn miền Bắc

Tư vấn - đặt hàng

Hotline 1: 079.456.4444
Hotline 2: 087.878.6886

Trợ giúp

Chi Tiết Sản Phẩm

Đánh giá & Nhận xét về Mainboard Gigabyte Z690 UD AX DDR4 V2 (WiFi + Bluetooth)

0 Đánh giá

5

0
4

0
3

0
2

0
1

0

Bạn đã dùng sản phẩm này?

Gửi nhận xét của bạn

Bạn cảm thấy sản phẩm như thế nào?

Tên bạn

Hủy

Hỏi và đáp (0)

Thông số kỹ thuật

Tên Hãng	Gigabyte
Model	Z690 UD AX DDR4 V2
CPU hỗ trợ	Intel
Chipset	Z690
RAM hỗ trợ	4 x DDR4 memory slots, support up to 128GB DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.) 4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.) 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 2933 / 2800 / 2666 / 2400 / 2133 MHz
Khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x16 slot, running at x1 (PCIEX1_4) 2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Ổ cứng hỗ trợ	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 6 x SATA 6Gb/s connectors
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C^® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Q-Flash Plus button 1 x Clear CMOS jumper

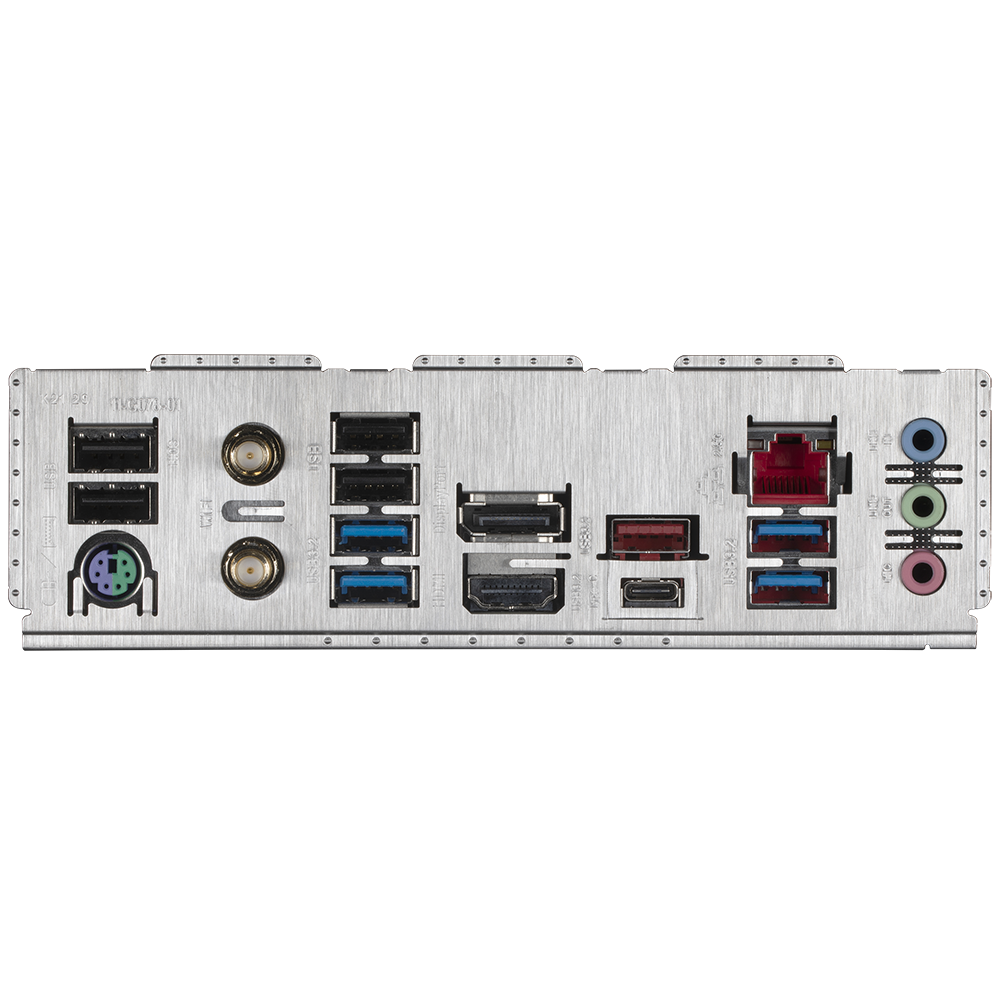

Cổng kết nối (Back Panel)	1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
LAN / Wireless	Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) / Intel Wi-Fi 6E AX211 / BLUETOOTH 5.3
Kích cỡ	ATX Form Factor; 30.5cm x 24.4cm

xem thêm

Tên Hãng	Gigabyte
Model	Z690 UD AX DDR4 V2
CPU hỗ trợ	Intel
Chipset	Z690
RAM hỗ trợ	4 x DDR4 memory slots, support up to 128GB DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.) 4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.) 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 2933 / 2800 / 2666 / 2400 / 2133 MHz
Khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x16 slot, running at x1 (PCIEX1_4) 2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Ổ cứng hỗ trợ	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 6 x SATA 6Gb/s connectors
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C^® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Q-Flash Plus button 1 x Clear CMOS jumper
Cổng kết nối (Back Panel)	1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
LAN / Wireless	Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) / Intel Wi-Fi 6E AX211 / BLUETOOTH 5.3
Kích cỡ	ATX Form Factor; 30.5cm x 24.4cm
