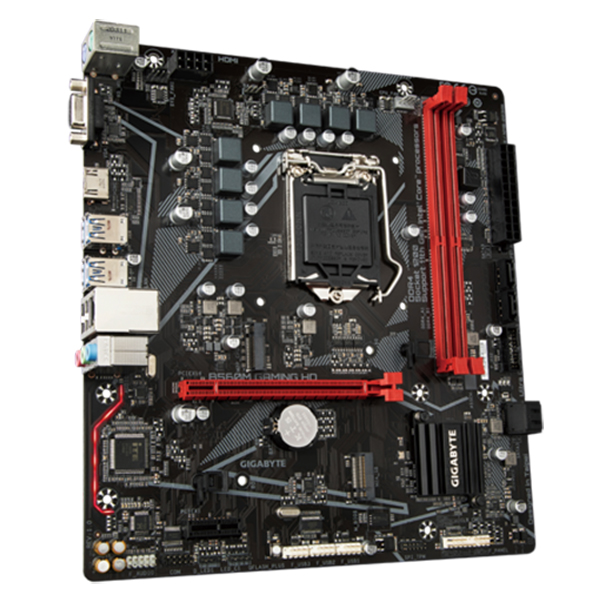

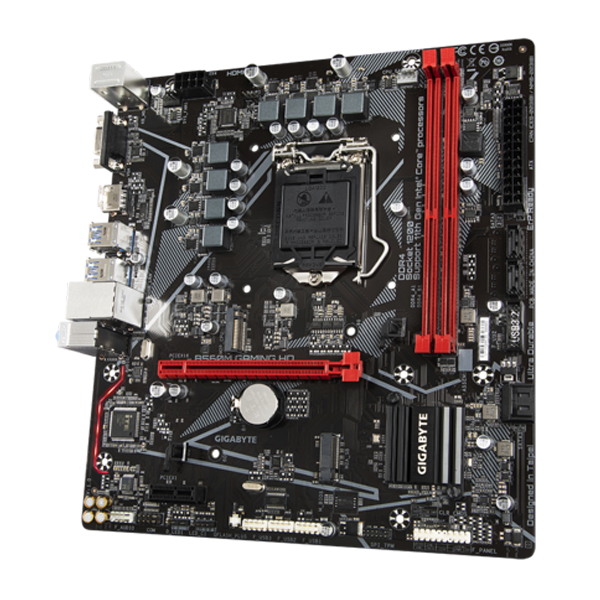

Mainboard GIGABYTE B560M GAMING HD

(0 lượt đánh giá)
Lượt xem: 405
Mã hàng: B560M GAMING

Đặc điểm nổi bật:

  • Socket: LGA1200 hỗ trợ CPU intel thế hệ 10 và thế hệ 11
  • Kích thước: Micro ATX
  • Khe cắm RAM: 2 khe (Tối đa 64GB)
  • Khe cắm mở rộng: 1 x PCI Express x16 slot, 1 x PCI Express x1 slot
  • Khe cắm ổ cứng: M.2 connector, 4 x SATA 6Gb/s

Bảo hành: 36 Tháng

2,100,000đ
Để lại số điện thoại, chúng tôi sẽ tư vấn cho Quý khách!
Đánh giá & Nhận xét về Mainboard GIGABYTE B560M GAMING HD

0

0 Đánh giá
  • 5
    0
  • 4
    0
  • 3
    0
  • 2
    0
  • 1
    0

Bạn đã dùng sản phẩm này?

Gửi nhận xét của bạn
Hủy
Hỏi và đáp (0)
Thông số kỹ thuật

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

B560M GAMING HD

CPU hỗ trợ

Intel

Chipset

B560

RAM hỗ trợ

2 x DDR4 DIMM sockets supporting up to 64 GB
11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:Support for DDR4 2666/2400/2133 MHz memory modules

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x1 slot (PCIEX1)

Ổ cứng hỗ trợ

1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
4 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

Cổng kết nối (Back Panel)

1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

LAN / Wireless

Realtek® GbE LAN chip (1 Gbit/100 Mbit)

Kích cỡ

Micro ATX Form Factor; 24.4cm x 22.5cm
