Mainboard Gigabyte Z790M AORUS ELITE AX DDR5 (Wifi+Bluetooth)

(0 lượt đánh giá)

Lượt xem: 297

Mã hàng: Z790M_AORUS_AX

-22%

https://tpluscomputer.vn/public/Mainboard Gigabyte Z790M AORUS ELITE AX DDR5 (Wifi+Bluetooth)

https://tpluscomputer.vn/public/mainboard_gigabyte_z790m_aorus_elite_ax_ddr5__1_

https://tpluscomputer.vn/public/mainboard_gigabyte_z790m_aorus_elite_ax_ddr5__2_

https://tpluscomputer.vn/public/mainboard_gigabyte_z790m_aorus_elite_ax_ddr5__4_

https://tpluscomputer.vn/public/mainboard_gigabyte_z790m_aorus_elite_ax_ddr5__5_

https://tpluscomputer.vn/public/mainboard_gigabyte_z790m_aorus_elite_ax_ddr5__6_

Đặc điểm nổi bật:

Hỗ trợ CPU Intel thế hệ thứ 12 và 13
Socket: LGA1700 , Chipset: Z790
Hỗ trợ RAM: 4 khe DDR5, tối đa 128Gb
Chuẩn mainboard: M-ATX

Bảo hành: 36 Tháng

5,350,000đ

6,800,000đ

Khuyến mãi:

ĐẶT MUA NGAY

Giao hàng tận nơi nhanh chóng

Để lại số điện thoại, chúng tôi sẽ tư vấn cho Quý khách!

Yên tâm mua sắm tại TPLUS COMPUTER

Sản phẩm 100% chính hãng
Đổi trả miễn phí trong 3 ngày
Bảo hành tận nơi sử dụng trong nội thành
Giá cạnh tranh nhất thị trường
Vệ sinh cài Win Trọn đời
Free ship toàn miền Bắc

Tư vấn - đặt hàng

Hotline 1: 079.456.4444
Hotline 2: 087.878.6886

Trợ giúp

Chi Tiết Sản Phẩm

Đánh giá & Nhận xét về Mainboard Gigabyte Z790M AORUS ELITE AX DDR5 (Wifi+Bluetooth)

0 Đánh giá

5

0
4

0
3

0
2

0
1

0

Bạn đã dùng sản phẩm này?

Gửi nhận xét của bạn

Bạn cảm thấy sản phẩm như thế nào?

Tên bạn

Hủy

Hỏi và đáp (0)

Thông số kỹ thuật

Tên Hãng	GIGABYTE
Model	Z790M AORUS ELITE AX DDR5
CPU hỗ trợ	Hỗ trợ cho thế hệ thứ 12 và 13 Intel® Core Socket LGA1700
Chipset	Z790
RAM hỗ trợ	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Khe cắm mở rộng	1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Support for AMD CrossFire™ technology
Ổ cứng hỗ trợ	CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper

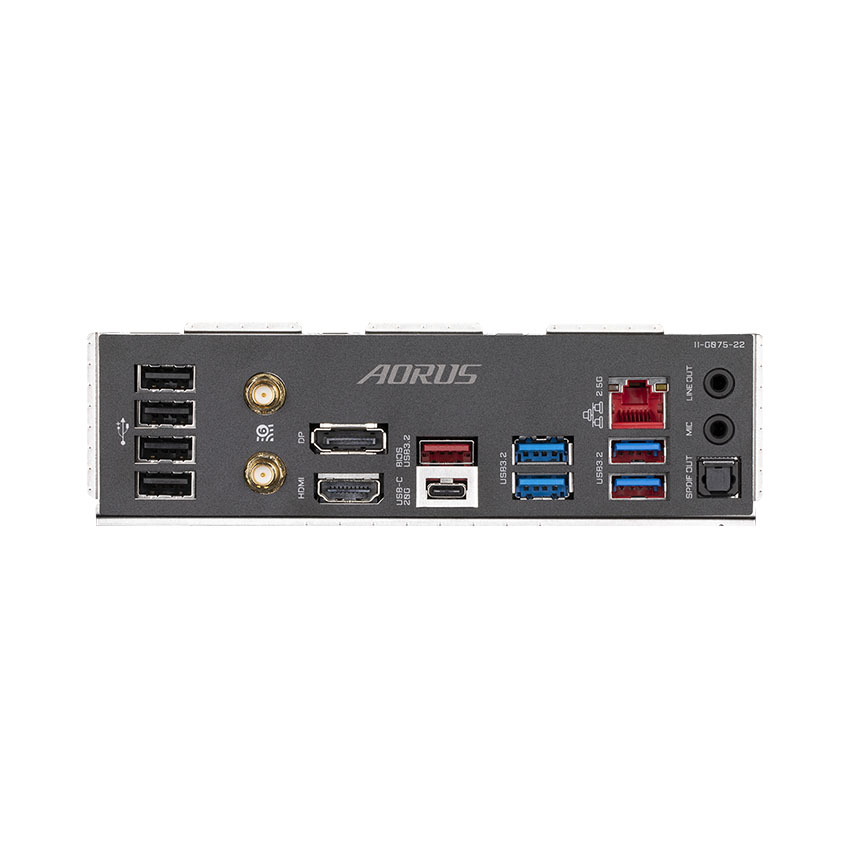

Cổng kết nối (Back Panel)	1x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WIRELESS/ BLUETOOTH	ntel® Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.

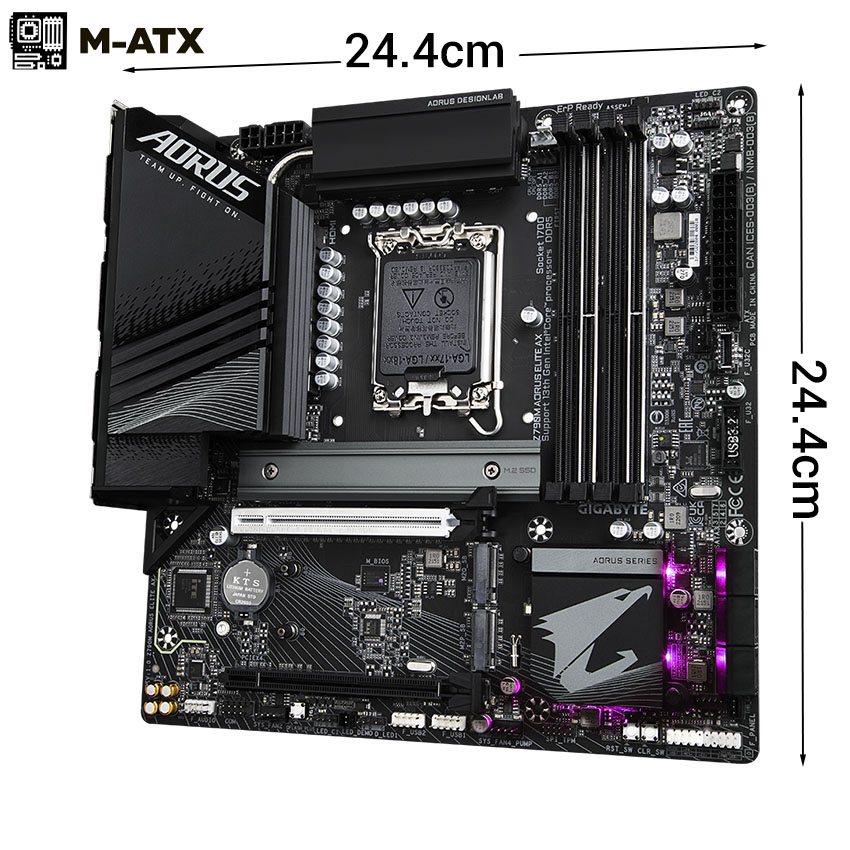

Kích cỡ	Micro ATX Form Factor; 24.4cm x 24.4cm

xem thêm

Tên Hãng	GIGABYTE
Model	Z790M AORUS ELITE AX DDR5
CPU hỗ trợ	Hỗ trợ cho thế hệ thứ 12 và 13 Intel® Core Socket LGA1700
Chipset	Z790
RAM hỗ trợ	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Khe cắm mở rộng	1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Support for AMD CrossFire™ technology
Ổ cứng hỗ trợ	CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper
Cổng kết nối (Back Panel)	1x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WIRELESS/ BLUETOOTH	ntel® Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Kích cỡ	Micro ATX Form Factor; 24.4cm x 24.4cm
