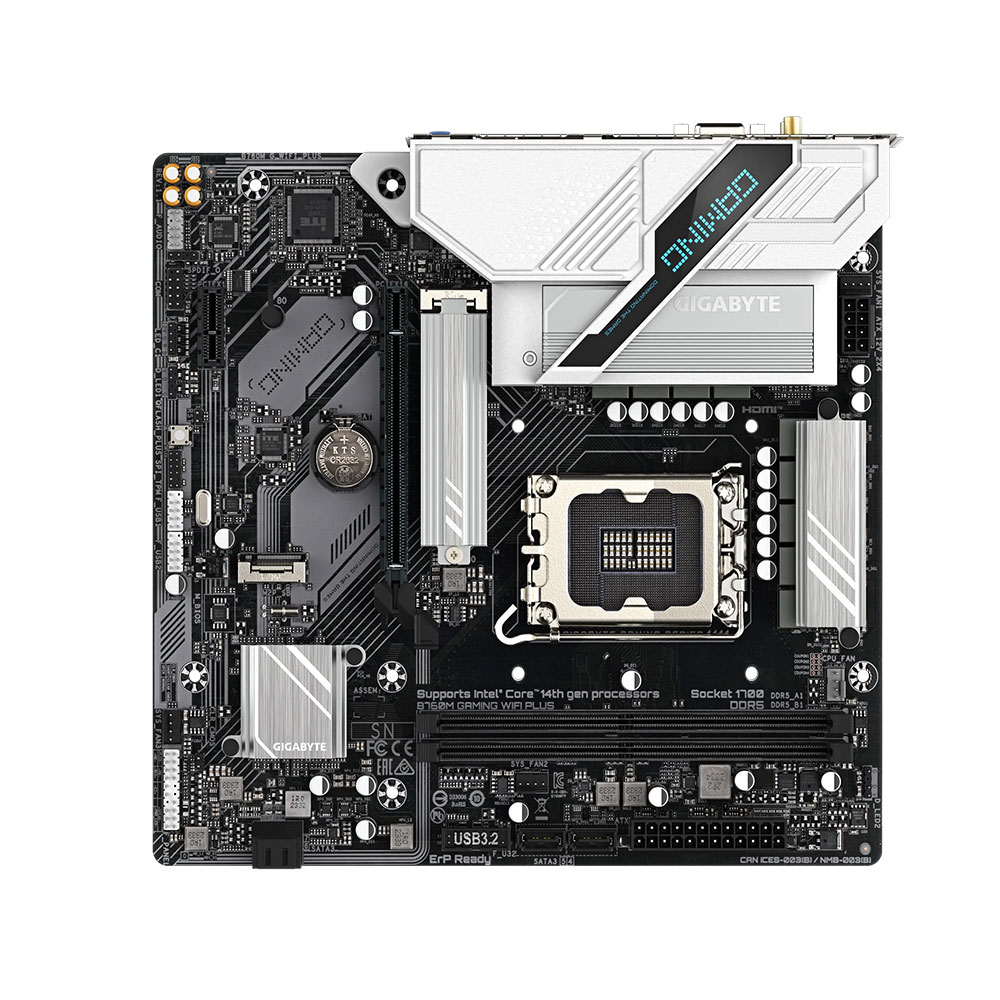

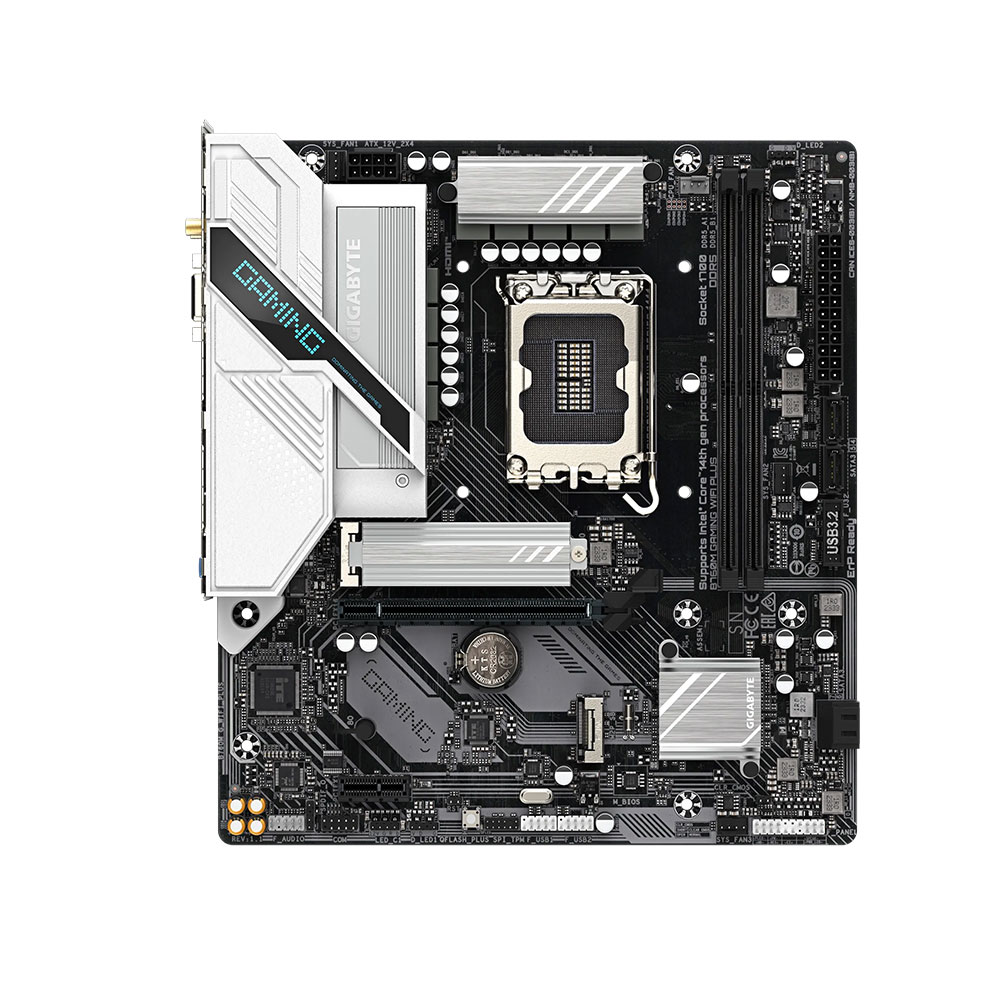

Mainboard Gigabyte B760M GAMING WIFI PLUS DDR5

(0 lượt đánh giá)

Lượt xem: 194

Mã hàng: B760M G WIFI PLUS

-8%

https://tpluscomputer.vn/public/Mainboard Gigabyte B760M GAMING WIFI PLUS DDR5

https://tpluscomputer.vn/public/Mainboard Gigabyte B760M GAMING WIFI PLUS DDR5 2

https://tpluscomputer.vn/public/Mainboard Gigabyte B760M GAMING WIFI PLUS DDR5 3

https://tpluscomputer.vn/public/Mainboard Gigabyte B760M GAMING WIFI PLUS DDR5 4

Đặc điểm nổi bật:

Socket: LGA1700 hỗ trợ CPU Intel thế hệ thứ 12, 13 và 14
Kích thước: Micro ATX
Khe cắm RAM: 2 khe (Tối đa 96 GB)
Khe cắm mở rộng: 1 x PCI Express x16 slot, 1 x PCI Express x1 slot
Khe cắm ổ cứng: 1 x M.2 connector, 1 x M.2 connector, 4 x SATA 6Gb/s connectors

Bảo hành: 36 Tháng

3,550,000đ

3,850,000đ

Khuyến mãi:

ĐẶT MUA NGAY

Giao hàng tận nơi nhanh chóng

Để lại số điện thoại, chúng tôi sẽ tư vấn cho Quý khách!

Yên tâm mua sắm tại TPLUS COMPUTER

Sản phẩm 100% chính hãng
Đổi trả miễn phí trong 3 ngày
Bảo hành tận nơi sử dụng trong nội thành
Giá cạnh tranh nhất thị trường
Vệ sinh cài Win Trọn đời
Free ship toàn miền Bắc

Tư vấn - đặt hàng

Hotline 1: 079.456.4444
Hotline 2: 087.878.6886

Trợ giúp

Chi Tiết Sản Phẩm

Đánh giá & Nhận xét về Mainboard Gigabyte B760M GAMING WIFI PLUS DDR5

0 Đánh giá

5

0
4

0
3

0
2

0
1

0

Bạn đã dùng sản phẩm này?

Gửi nhận xét của bạn

Bạn cảm thấy sản phẩm như thế nào?

Tên bạn

Hủy

Hỏi và đáp (0)

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	Gigabyte
Model	B760M GAMING WIFI PLUS
CPU hỗ trợ	Intel
Chipset	B760
RAM hỗ trợ	14th and 13th Generation Intel® Core™ i9/i7 Processors: - Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: - Support for DDR5 4800/4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture
Khe cắm mở rộng	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Ổ cứng hỗ trợ	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

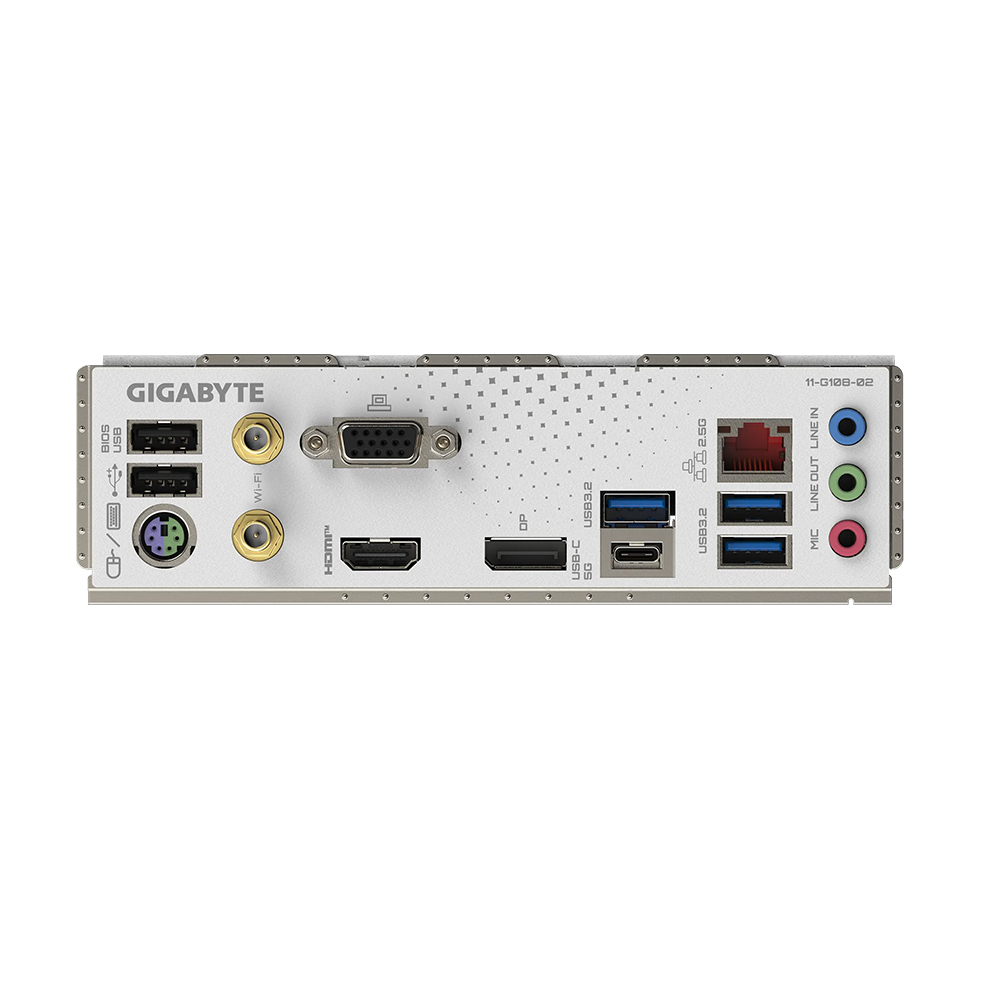

Cổng kết nối (Back Panel)	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (1T1R) / (2T2R) 1 x D-Sub port 1 x HDMI port 1 x DisplayPort 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks
LAN / Wireless	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Intel® Wireless-AC 9560 - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.1 - Support for 11ac 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Kích cỡ	Micro ATX Form Factor; 24.4cm x 22.5cm

xem thêm

Sản phẩm	Bo mạch chủ
Tên Hãng	Gigabyte
Model	B760M GAMING WIFI PLUS
CPU hỗ trợ	Intel
Chipset	B760
RAM hỗ trợ	14th and 13th Generation Intel® Core™ i9/i7 Processors: - Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: - Support for DDR5 4800/4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture
Khe cắm mở rộng	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Ổ cứng hỗ trợ	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Cổng kết nối (Back Panel)	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (1T1R) / (2T2R) 1 x D-Sub port 1 x HDMI port 1 x DisplayPort 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks
LAN / Wireless	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Intel® Wireless-AC 9560 - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.1 - Support for 11ac 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Kích cỡ	Micro ATX Form Factor; 24.4cm x 22.5cm
