Mainboard Gigabyte B760M D3HP DDR4((Intel B760, LGA1700, M-ATX, 4 khe RAM)

(0 lượt đánh giá)

Mã hàng: B760M D3HP DDR4

-11%

https://tpluscomputer.vn/public/Mainboard Gigabyte B760M D3HP DDR4((Intel B760, LGA1700, M-ATX, 4 khe RAM)

https://tpluscomputer.vn/public/z6052247818236_1149b9d342354e95b75a925e7a4ceb0d

https://tpluscomputer.vn/public/z6052248247998_d0960e21ab5c608865b2f75e59329222

https://tpluscomputer.vn/public/z6052248684671_c7a404a4821f6d6d9000e46def224c65

Đặc điểm nổi bật:

Socket: LGA1700 hỗ trợ CPU Intel thế hệ thứ 12, 13 và 14

Kích thước: Micro ATX

Khe cắm RAM: 4 khe (Tối đa 128GB)

Khe cắm mở rộng: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Khe cắm ổ cứng: 2 x M.2 connectors, 1 x M.2 connector, 4 x SATA 6Gb/s connectors

Bảo hành: 36 Tháng

2,650,000đ

2,950,000đ

Khuyến mãi:

ĐẶT MUA NGAY

Giao hàng tận nơi nhanh chóng

Để lại số điện thoại, chúng tôi sẽ tư vấn cho Quý khách!

Yên tâm mua sắm tại TPLUS COMPUTER

Sản phẩm 100% chính hãng
Đổi trả miễn phí trong 3 ngày
Bảo hành tận nơi sử dụng trong nội thành
Giá cạnh tranh nhất thị trường
Vệ sinh cài Win Trọn đời
Free ship toàn miền Bắc

Tư vấn - đặt hàng

Hotline 1: 079.456.4444
Hotline 2: 087.878.6886

Trợ giúp

Chi Tiết Sản Phẩm

Đánh giá & Nhận xét về Mainboard Gigabyte B760M D3HP DDR4((Intel B760, LGA1700, M-ATX, 4 khe RAM)

0 Đánh giá

5

0
4

0
3

0
2

0
1

0

Bạn đã dùng sản phẩm này?

Gửi nhận xét của bạn

Bạn cảm thấy sản phẩm như thế nào?

Tên bạn

Hủy

Hỏi và đáp (0)

Thông số kỹ thuật

CPU Hỗ trợ	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset	Intel^® B760 Express Chipset
Memory	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Interface	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

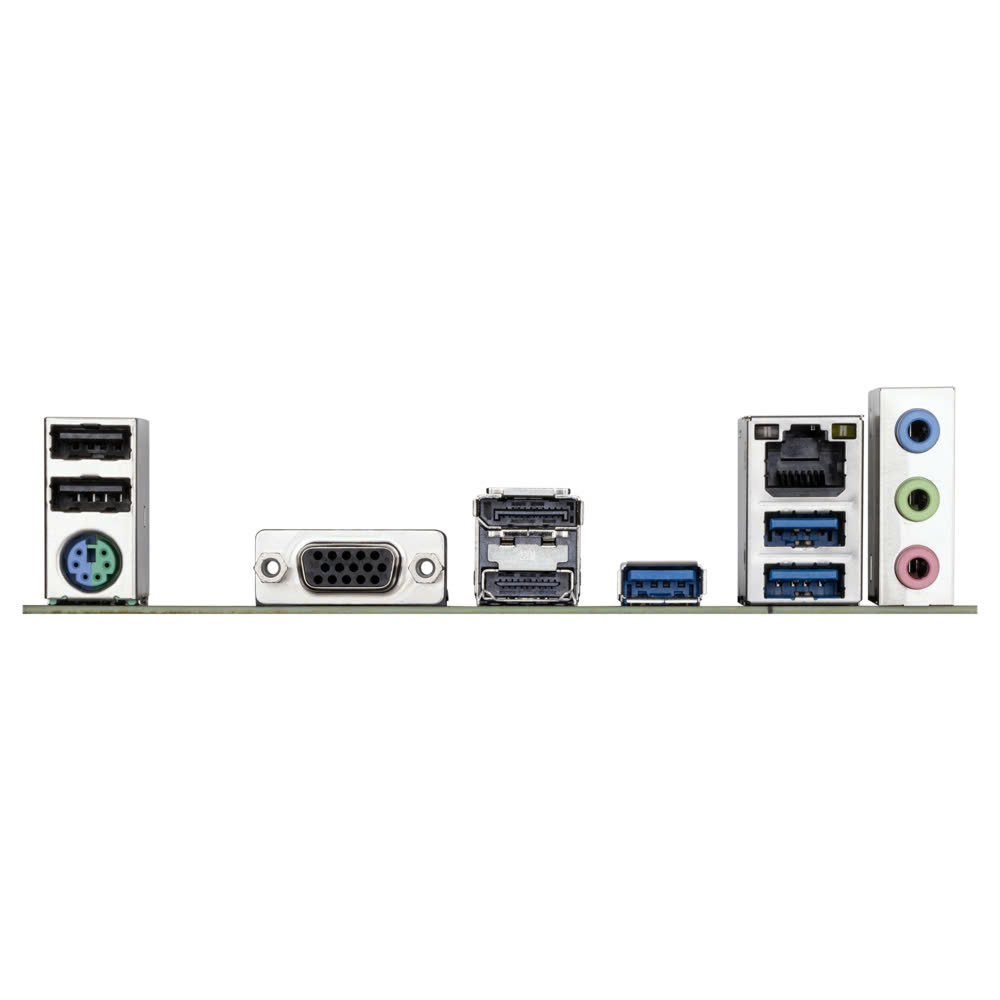

Back Panel Connectors	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE^® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm

xem thêm

CPU Hỗ trợ	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset	Intel^® B760 Express Chipset
Memory	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Interface	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Back Panel Connectors	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE^® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
