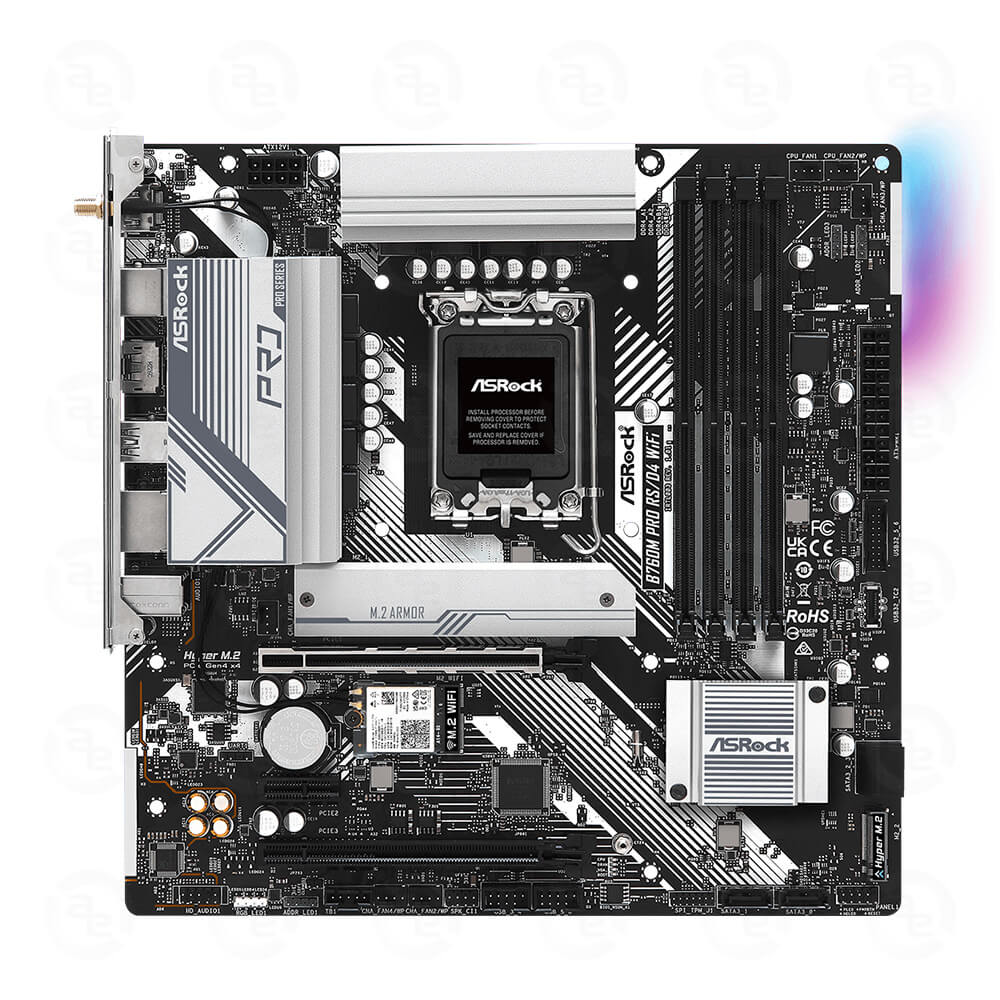

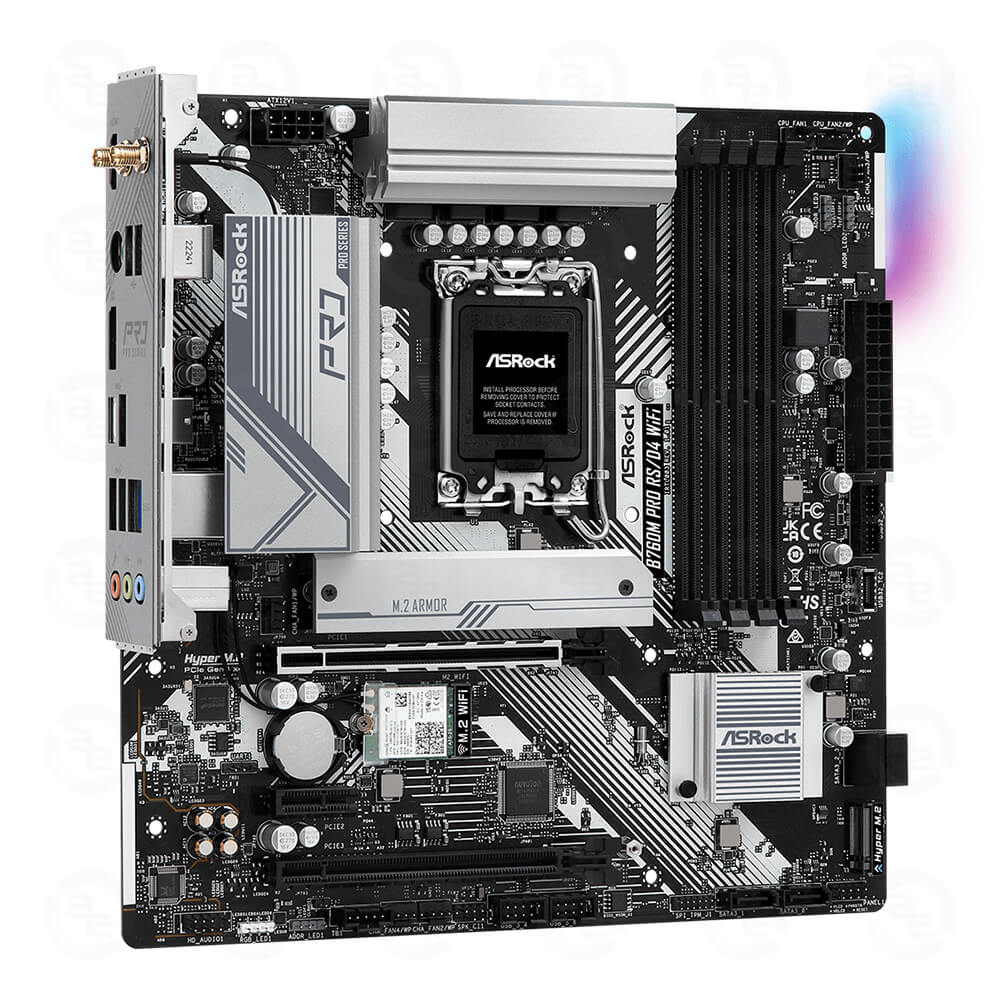

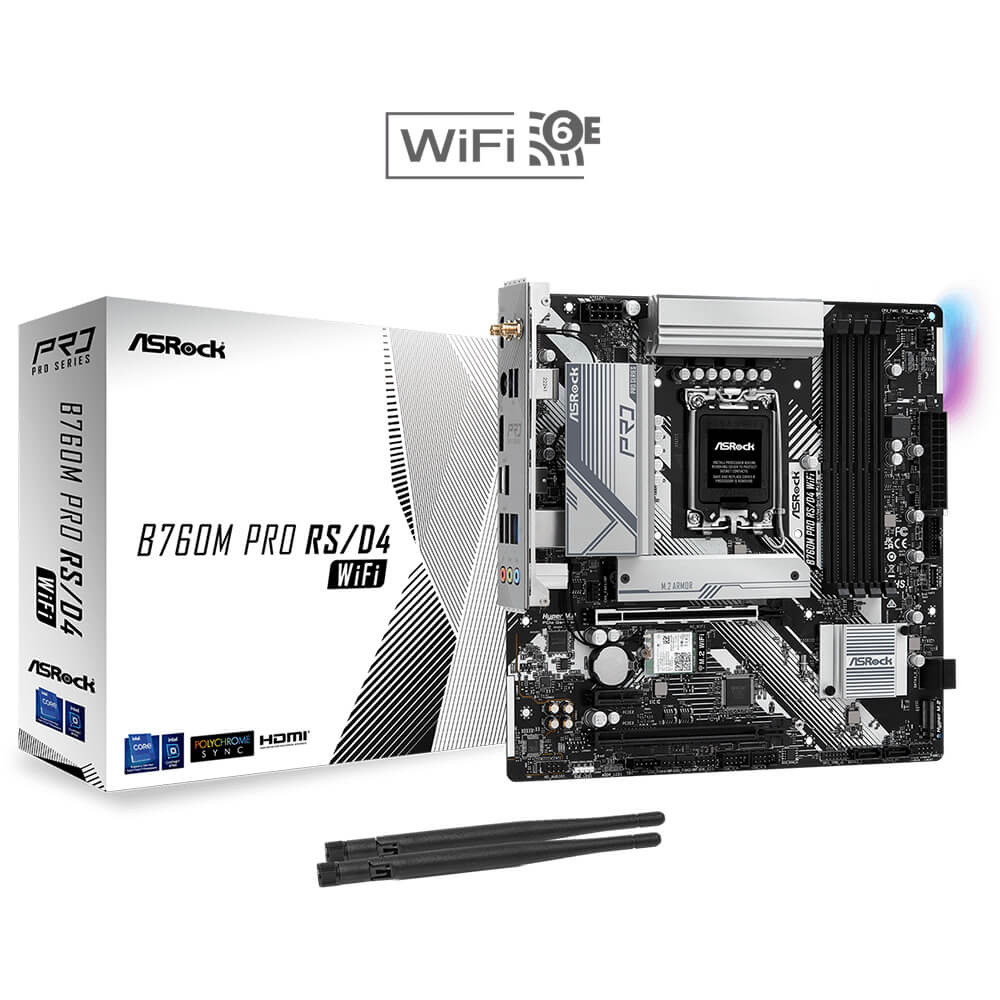

Mainboard Asrock B760M PRO RS/D4 WIFI

(0 lượt đánh giá)

Lượt xem: 195

Mã hàng: B760M

-21%

https://tpluscomputer.vn/public/Mainboard Asrock B760M PRO RS/D4 WIFI

Đặc điểm nổi bật:

Socket: LGA1700 hỗ trợ CPU Intel thế hệ thứ 12, 13 và 14
Kích thước: Micro ATX
Khe cắm RAM: 4 khe (Tối đa 128GB)
Khe cắm mở rộng: 1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x1 slot
Khe cắm ổ cứng: M.2 connectors, 4 x SATA 6Gb/s ports

3,599,000đ

4,499,000đ

Khuyến mãi:

ĐẶT MUA NGAY

Giao hàng tận nơi nhanh chóng

Để lại số điện thoại, chúng tôi sẽ tư vấn cho Quý khách!

Yên tâm mua sắm tại TPLUS COMPUTER

Sản phẩm 100% chính hãng
Đổi trả miễn phí trong 3 ngày
Bảo hành tận nơi sử dụng trong nội thành
Giá cạnh tranh nhất thị trường
Vệ sinh cài Win Trọn đời
Free ship toàn miền Bắc

Tư vấn - đặt hàng

Hotline 1: 079.456.4444
Hotline 2: 087.878.6886

Trợ giúp

Chi Tiết Sản Phẩm

Đánh giá & Nhận xét về Mainboard Asrock B760M PRO RS/D4 WIFI

0 Đánh giá

5

0
4

0
3

0
2

0
1

0

Bạn đã dùng sản phẩm này?

Gửi nhận xét của bạn

Bạn cảm thấy sản phẩm như thế nào?

Tên bạn

Hủy

Hỏi và đáp (0)

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	Asrock
Model	B760M PRO RS/D4 WIFI
CPU hỗ trợ	Intel
Chipset	B760
RAM hỗ trợ	Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)
Khe cắm mở rộng	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode * Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x PCIe 4.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVio/CNVio2 (Integrated WiFi/BT) * Supports NVMe SSD as boot disks - Supports AMD CrossFire™
Ổ cứng hỗ trợ	CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
Cổng kết nối (Internal)	- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2/WP supports the fan power up to 2A (24W). ***CHA_FAN1~4/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

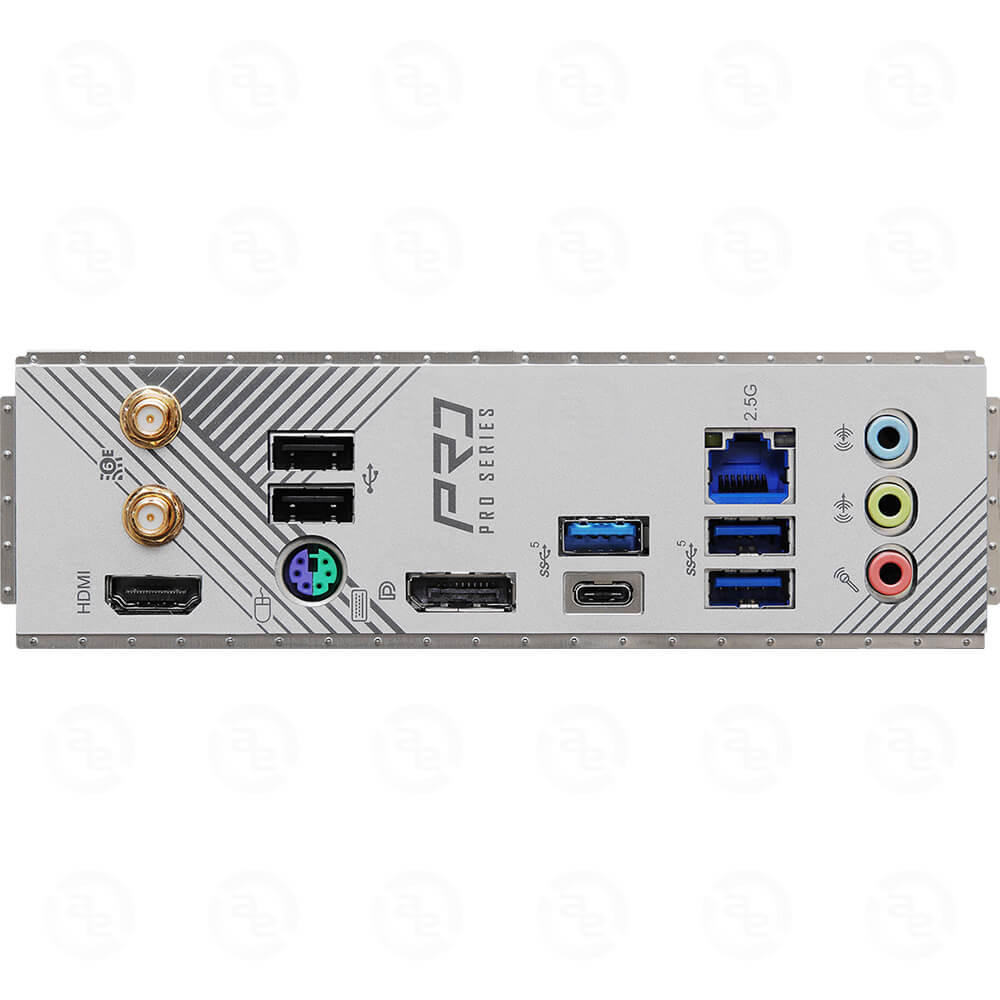

Cổng kết nối (Back Panel)	- 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
LAN / Wireless	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.3 + High speed class II - Supports MU-MIMO
Kích cỡ	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
